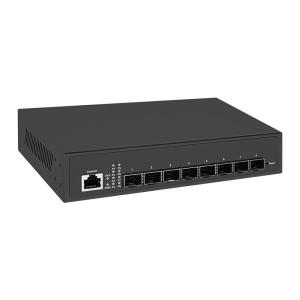

This 10Gb Layer 3 Switch is a high-performance networking solution designed to deliver advanced functionality and scalability for businesses. It is equipped with 10Gb Ethernet ports that enable it to provide fast and reliable data transfer speeds. The switch also features advanced management tools such as Web-based GUI, CLI, SNMP, and 802.1X, SSH, SSL, and ACLs security. With its robust features and reliable performance, this 10Gb Layer 3 switch is perfect for businesses that need a reliable and high-performance networking solution.
The switch features a rack-mountable form factor, making it easy to install and integrate into any existing network. It also features advanced management tools such as Web-based GUI, CLI, SNMP, and 802.1X, SSH, SSL, and ACLs security, ensuring secure and efficient management of your network. With its 10Gb Ethernet ports, the switch can provide fast and reliable data transfer speeds, making it perfect for businesses that require high-performance networking solutions.
This 10Gb Layer 3 switch is the perfect solution for businesses that need a reliable and powerful networking solution. Its advanced management tools, robust security features, and reliable performance make it an ideal choice for businesses that require a high-performance and secure networking solution. Whether you need a switch for a small business or a large enterprise, this 10Gb Layer 3 switch is the perfect choice for your network.
| Parameter | Value |
|---|---|
| Power Supply | AC 100-240V 50/60Hz |
| Standards | IEEE 802.3, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3cb, IEEE 802.3x |
| Ports | 8 x 10Gbps SFP+ fiber ports,1x Console port |
| Indicator | 8 link/act indicators, power input indicator, system operation indicator |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (MAX 100m) 100Base-Tx: UTP category 5, 5e cable (MAX 100m) 1000Base-T: UTP category 5e, 6 cable (MAX 100m) 10GBase-T:UTP category 6A cable (MAX 100m) |
| Warranty | 1 Year |
| Dimensions | 195*165*40 mm |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 16K |
| Switching Capacity | 160Gbps |
| Packet Forwarding Rate | 119.04Mpps |
| Packet Buffer | 12Mbit |
| Jumbo Frame | 12KBytes |
| Mounting Method | Rack Mount |
| Environment | Operating Temperature: 0℃ ~45℃ (32℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| L3 Features | IPV4/IPV6 | ||||
| Dynamic ARP | |||||
| L2 Features | Flow Control | ||||
| 802.3x (full duplex) | |||||
| Back pressure (half duplex) | |||||
| Link aggregation | |||||
| Spanning Tree | 802.1D (STP),802.1w (RSTP),802.1s (MSTP) | ||||
| ERPS,BPDU Filtering | |||||
| Automatic Edge Port | |||||
| VLAN | 8 groups Protocol-based VLAN | ||||
| support VLAN Translation | |||||
| 256 MAC-based VLAN | |||||
| Voice VLAN | |||||
| Monitoring VLANs | |||||
| IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP,Private VLAN,GVRP,VLAN VPN | |||||
| 4096 static VLANs | |||||
| multicast | IGMP Snooping(v1,v2,v3) | ||||
| MVR, MLD Snooping V1/V2 | |||||
| Multicast VLAN Registration (MVR) | |||||
| QoS | 8 priority queues per port | ||||
| Support port-based and VLAN-based PolicyMap binding | |||||
| TOS, DSCP, 802.1p priority field rewrites | |||||
| Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP | |||||
| Support flow classification based on ACL flow, COS, TOS, DSCP | |||||
| ACL | Custom ACL, MAC-based, IP-based, port-based | ||||
| Security Features | IEEE 802.1X certification,Guest VLAN,Port-based,Host-based,MAC Auth,Web Auth | ||||
| Storm Control, Ports Security,Port Isolation | |||||
| DHCP Snooping,CPU Defence Engine,DoS Prevention,256 IP Source Guard | |||||
| Dynamic ARP Check,IP,MAC,Port Binding,Dynamic VLAN Assignment,Management Access, | |||||
| HTTPS,BPDU,SSH v1/v2,8 TACACS+,8 RADIUS | |||||
| Management | Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management | ||||
| Diagnosis | mirror Many-to-One | ||||
| UDLD,System Log (RFC3164) | |||||
| System Diagnosis,Port Diagnostics,Network Diagnosis | |||||
Sirivision 10gb Layer 3 Switch is a high-performance network switch designed for enterprise and data center applications. The 10gb switch offers 10 gigabit Ethernet switching, and VLAN support. The device is manufactured in Shenzhen, China and is powered by AC 100-240V 50/60Hz power supply. It is an ideal solution for enterprise and data center networks that require high-performance routing and VLAN capabilities.
Brand Name: Sirivision
Place of Origin: Shenzhen, China
Product Name: 10gb Layer 3 Ethernet Switch
Form Factor: Rack-mountable
Port Speed: 10Gbps
Port Number: 8
The Sirivision 10gb Layer 3 Ethernet Switch is the perfect solution for high-speed networking. It features 8 ports with 10Gbps speed. The switch is designed for rack-mountable installation and is ideal for providing reliable and high-speed data transfer.
